Desktop Mini Ionizer Air Blower

1. Working Principle

The ionized air blower is compactly designed using a DC operating method. It can be mounted inside devices and effectively eliminates static electricity. It offers low power consumption, long-lasting use, and safe and stable performance.

2. Features

Tungsten needle electrode—long service life.
Three-stage adjustable fan speed (high/medium/low).
Use with an external adapter.
Mini size—easy integration into devices.
CE certified, with electromagnetic protection function.

3. Technical Specifications

Input Voltage: DC 12V
Power: 5.5W
Operating Voltage: ±DC3000-5000V
Ion Diffusion: Constant DC
Electrode Tip: Tungsten Alloy
Discharge Structure: Independent electrical contact (discharge cylinder)
Discharge Area: 450 × 300 mm (L × W)
Discharge Speed: ≤ 1.5 sec (at a distance of 150 mm)
Ion Balance: -15V ~ +15V (at a distance of 150 mm)
Alarm Indicator: If the power light is on, it is operating normally.
Air Volume: ≤ 48.2 CFM
Noise: ≤ 38.9 dB (at a distance of 1 m)
Ozone Level: ≤ 0.05 ppm (at a distance of 150 mm)
Operating Temperature: 0-50 °C
Operating Humidity: 30-70% RH
Dimensions: 85 × 54 × 112 mm (Fan housing)
Body Material: Aluminum (powder coated)
Accessories: U-shaped aluminum mounting bracket, bakelite screw handles (M5×10)
Adapter Input: AC100-240V 50/60Hz; Output: DC12V 1000mA
Net Weight: 350 g (including brackets and screw arms)
Gross Weight: 600 g
Warranty: 1 Year
Certificate: CE
4. Mode of Operation
The IAB-32453 mini ion blower generates a DC high-voltage corona discharge using positive and negative synchronous emission electrodes. This ionizes air molecules, producing a high concentration of positive and negative ions. The generated ions are directed to the target surface by the axial fan flow, quickly and efficiently eliminating static electricity.

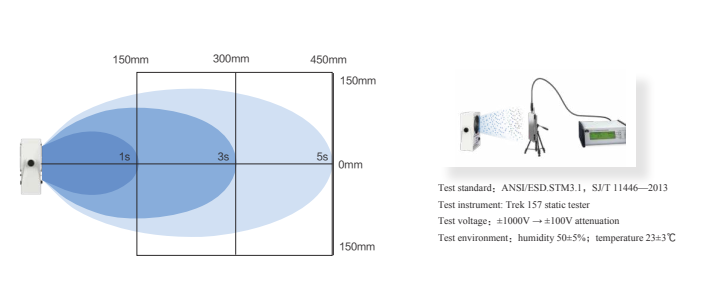

5. Electrostatic Elimination Effect

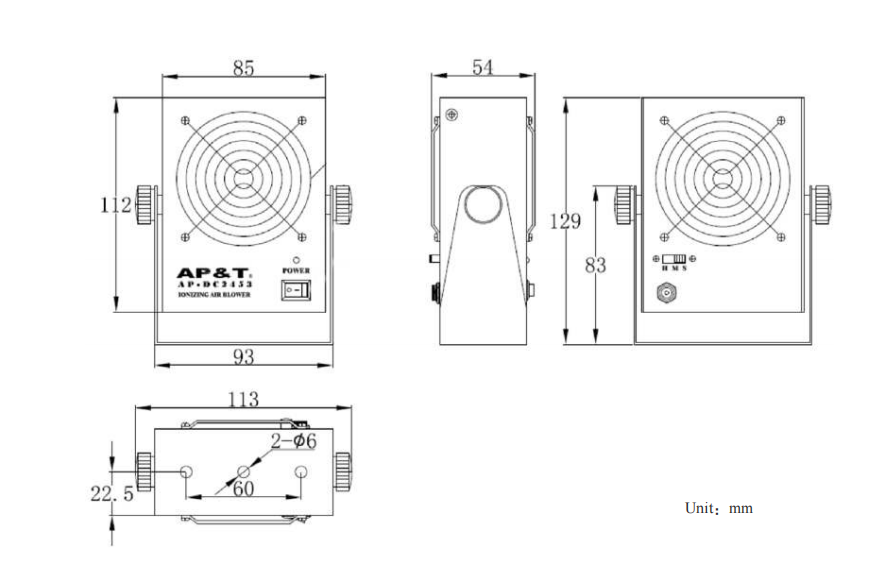

6. Product Dimensions
