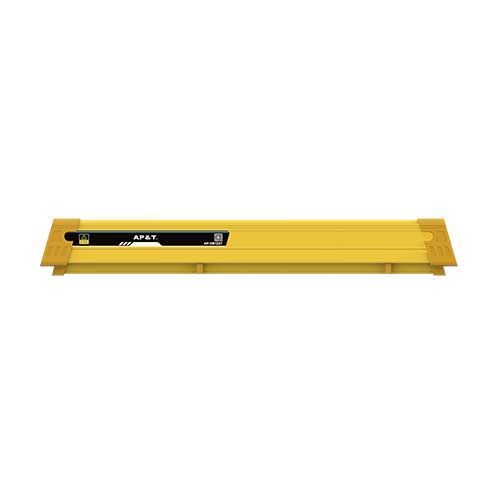

DC Ion Bar (500 mm) Air-Free Long Effect Distance
| Brand: | AP&T Static |
| Product Code: | SIB-DB1227 |
| Origin: | China |
It incorporates DC static elimination technology and offers excellent ESD performance suitable for static elimination on object surfaces with high-speed movement and high friction levels. Manufacturer part code: AP-DB1227
DC Ion Bar (500 mm) Air-Free Long Effect Distance
Features:
Input Voltage DC 24V Power <15W Electrode High Voltage <30KV Ion emission pulse DC Emitter Electrode Tungsten (W)
Output Frequency (Freq): 0.1, 0.3, 0.5, 0.7, 1.3, 5.7, 10, 30, 55 Hz
Factory Setting: 1 Hz; parameters can be adjusted with the Freq coding key or remote control
The high voltage output is calibrated at the factory but can be adjusted on-site according to the application and can be reselected for the appropriate operating frequency to maximally eliminate static charges on the object's surface.
Ozone Thickness < 0.1 ppm (100 mm from the emission electrode)
Status Indicator A green light indicates normal operation, red light indicates high-voltage abnormality, and a blue light
indicates adjustment/cleaning indicator RJ45 connection point indicator light: green light indicates power, and an orange light indicates communication
Status Monitoring RS485 (115200 bps, 8.1.n, n) > 30 ms Collector Open Circuit: <50V, 100mA
Operating temperature 0°C-50°C Operating humidity <70% Dimensions L'W' H: L'38*77.5mm (See Dimension Diagram for details)
Bar Body Material Flame Retardant PVC,
ABS Installation Accessories M5 Sliding Nut,
Support Power Supply GRT-240200: DC24V 2A, Dual Network Port Output, 123*61*40.5mm (L'W'H)
Supporting Power Network Cable 2.5m
Warranty: 1-Year
Certification CE
