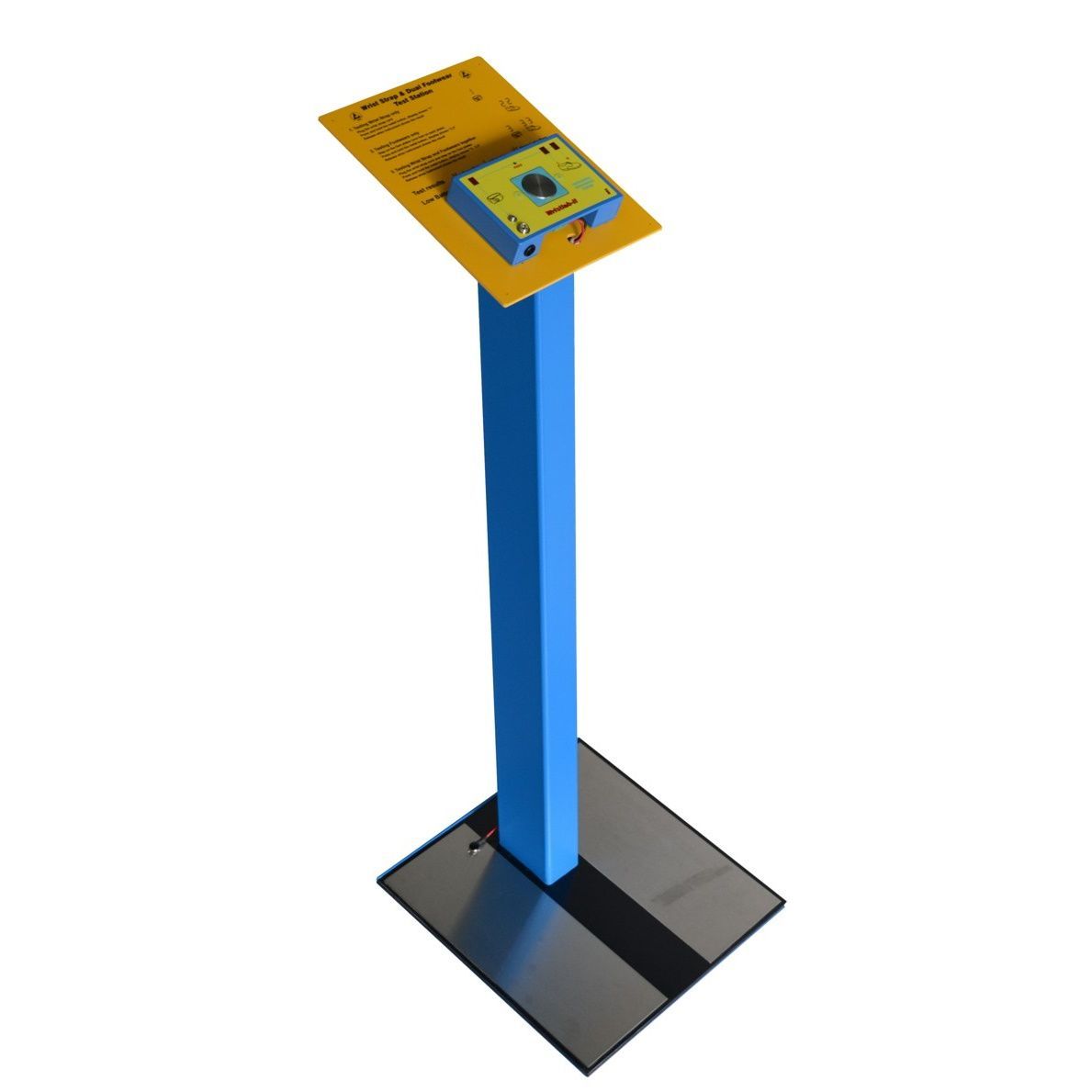

Wrist and Shoe Testing Machine (Stand Type)
| Brand: | iteco |
| Product Code: | WST-1852 |
| Origin: | Italy |
This device is used for testing the wristband, heel strap, and shoes used for grounding personnel. The wristband can be measured separately for the right and left shoes. It has an automatic door or turnstile control connection. It complies with EN 61340-5-1.
Wrist and Shoe Testing Machine (Stand Type)
This device can be set to different operating modes using the keyboard on its screen.
The desired measurement range can be changed in the settings, and it provides feedback to the user via LED lights based on the test results within this range.
It is designed according to the measurement ranges specified in the IEC 61340-5-1 standard.
Thanks to the dry contact on the device, you can open sensor doors, turnstiles, or electronically locked doors.
Power Supply: 9 V battery included with the device or external 9-12 V power adapter
Wristband Input: 10 mm, 4 mm snap-on, or 4 mm banana plug input
Wristband Test Lower Limit: 0-750 KΩ (Selectable) - 35 MΩ
Shoe Lower Limit: 0/100KΩ (Selectable) (For Single Foot)
Shoe Upper Limit: 35/70/100 MΩ (Selectable) (Selectable) (For Single Foot)
Shoe Lower Limit: 0/200KΩ (Selectable) (In Series)
Shoe Upper Limit: 70/140/200MΩ (Selectable) (In Series)
Limit Tolerances: 10%
Relay Output: max. 60 V-1A-60VA
Test Voltage: 50 V/100 V ±10 V
Dimensions: 156x110x54 mm
