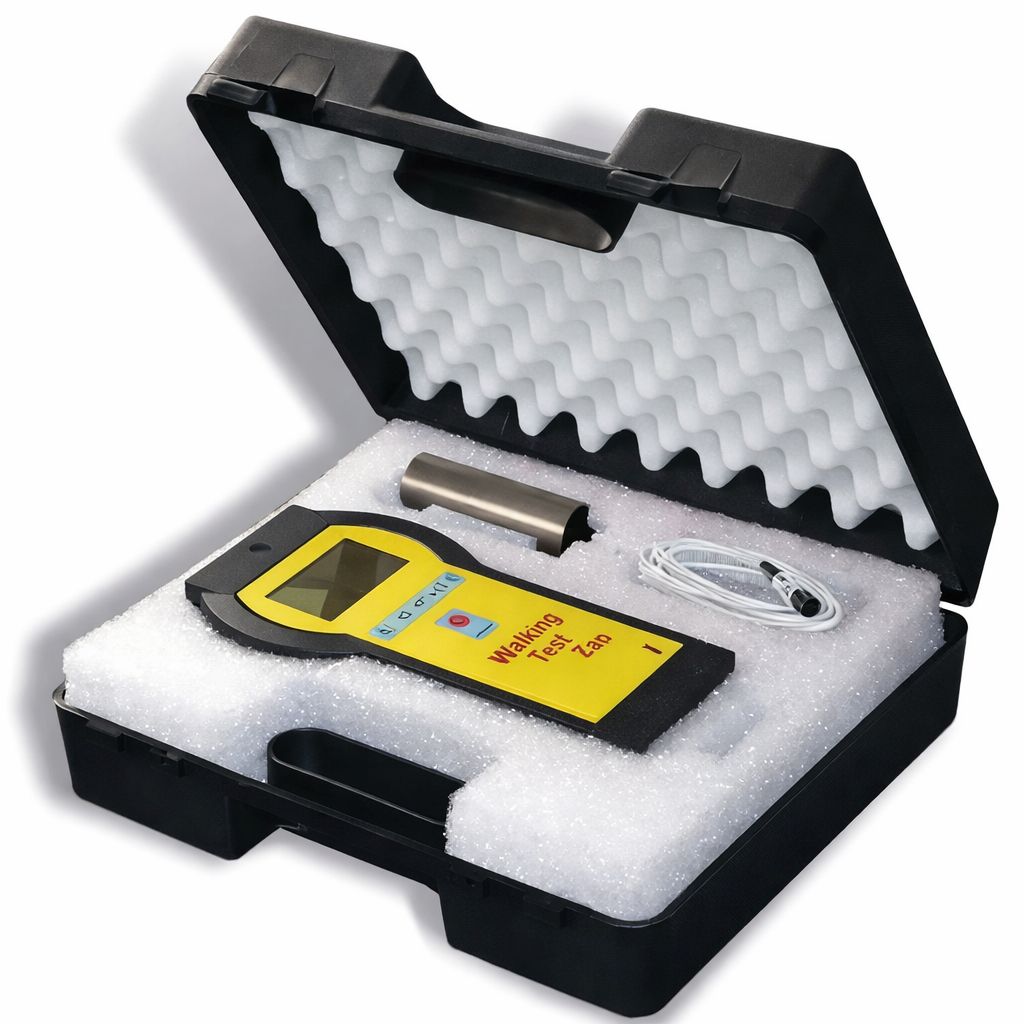

Walking Test Meter

It is completely portable and does not require a PC to collect data, as all data is measured and recorded in the internal memory.

The operator can perform all necessary procedures without any coworker assistance, and while walking, the instrument is attached to a fixed position with only a single cable to serve as a reference on the ground.
Test schedules can be displayed on the graphic LCD for quick evaluation.
They can then be easily exported to a PC for professional documentation and analysis.
A program for managing the tests recorded on the instrument is included in the EVO Walking Test.
Walking Test: This tool is used by the ESD manager to evaluate the body load in an EPA area. In fact, the characterization of the system is obtained by measuring the electrical resistance and loadability of the shoe/floor with a person.
- Electrical resistance can be measured with a megohmmeter such as this product.
- The walking test analyzes chargeability (body voltage) and can be performed with this device.
Range: ± 1050V
Resolution: 1V
Accuracy: ±5% or ±5V
Input resistance: 10^14Ω
Humidity measurement: Range: 1% to 95% Relative
Resolution: 0.1% relative
Accuracy: ±2% relative humidity (at 25°C, 10% to 90% relative humidity), ±3% relative humidity (at 25°C, 1% to 10% relative humidity, 90% to 95% relative humidity)
Temperature measurement: Range: -20 °C to +60 °C
Resolution: 0.1 °C
Accuracy: ±1 °C
Display: 128x64 pixels, 68x51 mm liquid crystal graphic.
Power source: 6 alkaline batteries LR6 1.5V

Dimensions: 243x130x60 mm (device) - Ø35x130mm (probe)
Weight: 650g (device) - 250g (probe)
Up to 10 graphs can be stored in the data logger device's
internal memory.
Sampling frequency: 200 Hz
Maximum graph duration: 2 minutes 30 seconds
Interface: USB
WT Manager software (included)
Management program for data stored by the device, compatible with WIN XP / 7/8/10
The arithmetic averages of the highest 5 peaks (P1-P5) and the highest 5 valleys (T1-T5) are indicated for each measurement session.
