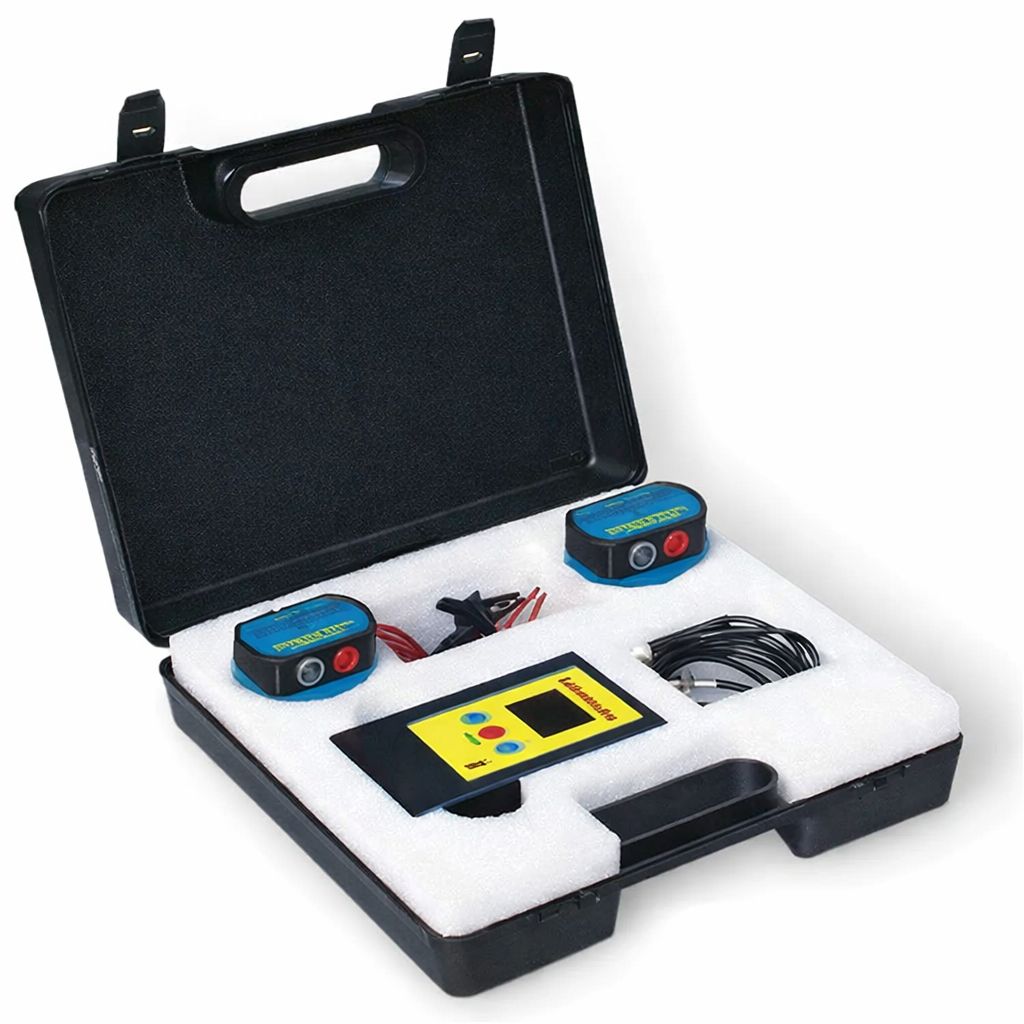

Labeohm Surface and Soil Resistance Meter

Labeohm EVO is a device that measures the surface resistance and grounding resistance of mats, work surfaces, floor coverings, and other objects in the EPA area.

Embedded probes are suitable for measuring surface resistance.

Grounding resistance can be read when a grounding cable is connected.

Point-to-point measurements can be made by connecting two external probes.

The device is pocket-sized and uses two parallel embedded electrodes positioned in accordance with the DIN EN 100015/1 standard.

EVO version: More sensitive (½ decade accuracy). It displays values to one significant digit and is equipped with a graphic display and a programmable audible alarm.

Technical Specifications

Measurement range: 10⁴ - 10¹² Ω

Test voltage: 10V (R < 100KΩ), 100V (R > 100KΩ)

Electrodes: Soft conductive rubber

Dimensions: 80 × 120 × 27 mm

Supplied with an ISO9000 traceable calibration report.

Factory calibration included. Accredited TÜRKAK calibration is performed externally!
