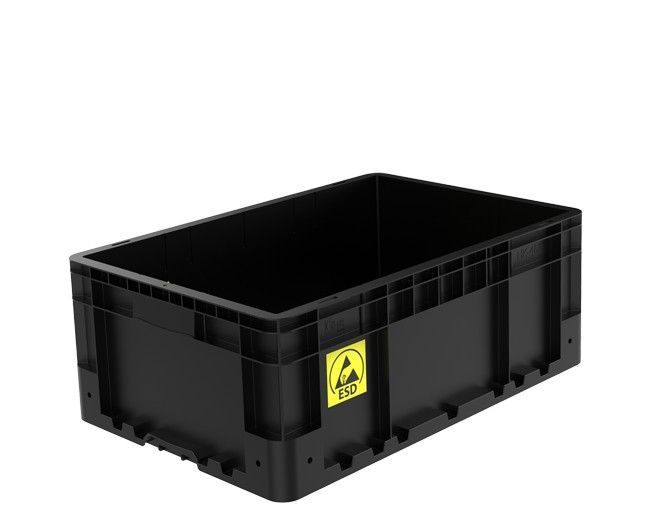

The CTB-66423 ESD Conductive Plastic Crate is designed for the safe storage, handling and transportation of electronic components and other electrostatic-sensitive materials. Its conductive construction helps discharge accumulated static electricity, reducing the risk of electrostatic damage during production, storage and transportation.

The crate features solid side walls and a closed base to provide enhanced protection against dirt, debris and external contact. Its reinforced ribbed bottom improves structural strength, making it suitable for demanding industrial applications. Integrated hand-protected grips support safe and comfortable manual handling.

Thanks to its stackable construction, the CTB-66423 helps maximize available space in warehouses, production areas and transport vehicles. Its standard 400 × 600 mm footprint is compatible with both 800 × 1200 mm and 1000 × 1200 mm pallet systems.

Technical Specifications:

Product Code: CTB-66423
Product Type: ESD conductive plastic crate
External Dimensions: 400 × 600 × 230 mm
Internal Dimensions: 364 × 564 × 220 mm
Material: ESD conductive plastic
Construction: Solid side walls and closed base
Base: Reinforced ribbed base
Handles: Integrated hand-protected grips
Stackable: Yes
1000 × 1200 mm Pallet Quantity: 60 units
800 × 1200 mm Pallet Quantity: 48 units
40 HC Container Quantity: 1,320 units
Truck Quantity: 1,560 units
