Cleanroom Ceiling Ionizer

Brand: AP&T Static
Product Code: CCI-3123
Origin: China

Cleanroom Ceiling Ionizer provides efficient static elimination with low ozone emission, stable ion balance, and reliable performance for cleanroom applications.

1.PRINCIPLES:
Cleanroom Ceiling Ionizer is a bar-type static eliminator developed and produced to eliminate static electricity in clean spaces and maintain static balance in clean spaces.

2.FEATURES:
1. Unique discharge structure design(equipped with special Si electrodes, suitable for eliminating static electricity and charged particulate pollutants in space)
2. Working status indicator(Red light alarm when high voltage is abnormal)
3. Serial installation(Both ends of the product can supply power/ communication, allowing serial installation, saving the number of power adapters and ion bars as well as installation workload)
4. CE certification(It can effectively prevent the external electromagnetic interference from affecting the normal operation of the ion bar)

3.SPECIFICATION:

ParameterValue
Model AP-DB1233
Input Voltage AC 24V
Power 1W
Output Voltage ±10KV – 20KV
Ion Emission Pulse DC / Steady DC
Emitter Electrode Si
Ion Bar Module Default Component Length: 2.5 (5, 10, 15, 24, 36, 60, 66) inch
Ozone Concentration < 0.1ppm (50mm From the emission electrode)
Status Indicator Red light - High voltage abnormal, Alarm indication
Blue light - Infrared, Pause, Clean Indicator
White light (Both ends of the bar) - High voltage output status indication
Status Monitoring RS485 (115200bps,8,1,n,n) ≥ 30ms
Open Collector: < 50V,100mA
Working Temperature 0°C - 50°C
Working Humidity < 70%
Dimensions LWH: 4553633mm
Bar Material Flame Retardant PC
Controller AP-SA6101
INPUT: 220VAC 50Hz / 110VAC 60Hz
OUTPUT: 24VAC 2000mA, 3207269mm (LWH)
Adapts 6-Core Power Cable Cable length customizable
Warranty 1 Year
Certification CE

4.WORKING MODE:
The AP-DB1233 cleanroom ceiling ionizer uses a DC high-voltage power supply and a special silicon-based electrode. Through alternating positive and negative DC high voltage acting on positive and negative coupled electrode needles, it generates corona discharge, ionizes air molecules, produces a large number of positive and negative air ions, neutralizes the locally unbalanced static charges in the space, achieves efficient and reliable maintenance of static balance in the space, reduces the adhesion of particles in the space, makes pollutant particles easy to be filtered out by the air conditioning purification system, and reduces particle pollution in the space.

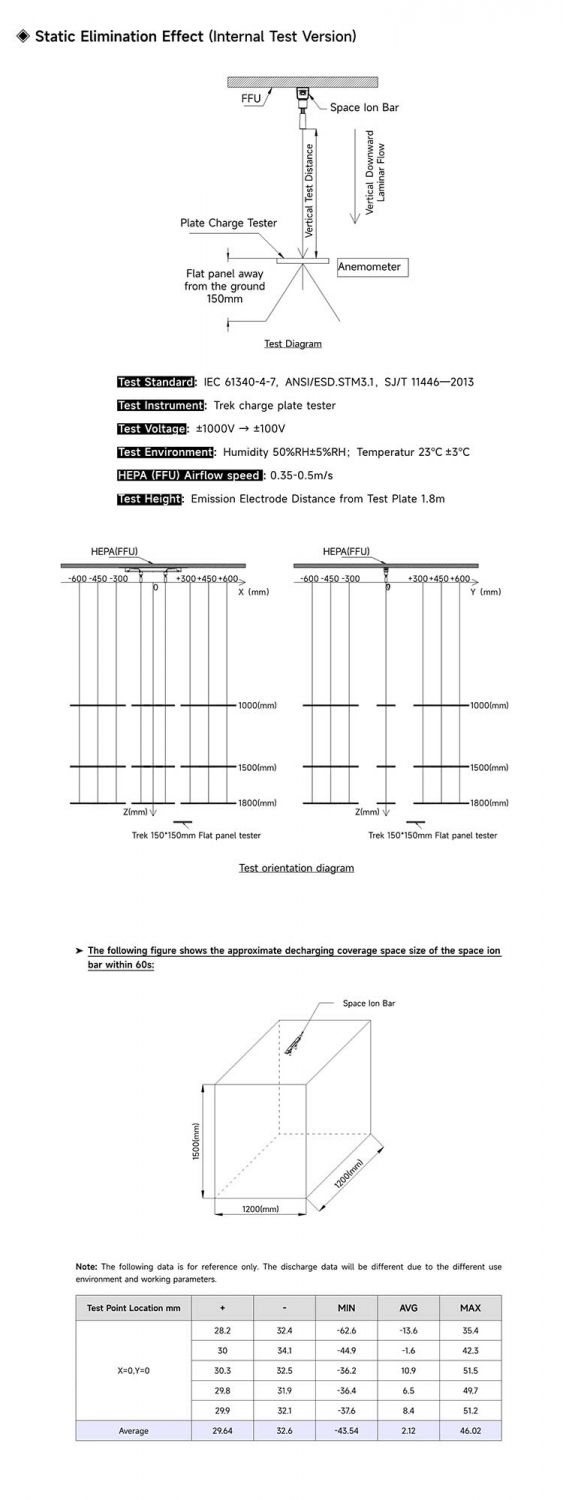

5.ELECTROSTATIC ELIMINATION EFFECT:

aa

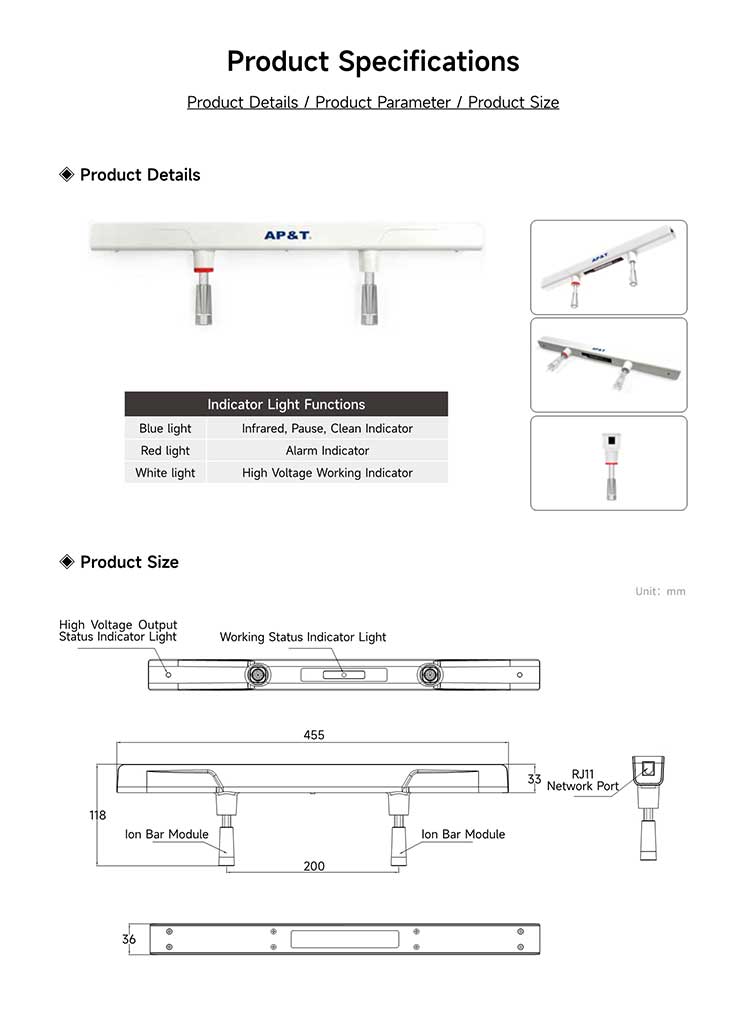

6.PRODUCT SIZE:

a
